The custom pick and key decoder will work on the original solid style key or the newest hollow design key.

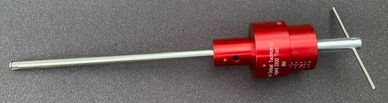

Lagard 2200 Custom Pick – This tool is the finest made tool available for opening this keylock. What makes this tool different from any other tool ever offered? The machining and design of this tool is exceptional. The tube and wheel manipulation tip are machined from stainless steel to give years of service to the safeman. This tool has a built in laser engraved indicator to enable the user to load the actual key combination into each wheel. Spacing detents for wheel positions and neutral positions enable the user to identify their exact position within the lock. This tool incorporates a unique device that allows the tool to be handed in seconds so that the spacing and wheel setting marks are always on the top, so no matter what hand the lock is installed, it is always comfortable to read the built in information. Nothing has to be installed on the door surface for graphing purposes, just stick the tool in the lock and you are ready to pick the lock. This tool is built to accommodate a maximum door barrier thickness of 7.5”, so this pick is long enough to work on virtually any high security safe.
Detail of laser engraving showing the spacing marks along with 18 different depths.
Click the link below to watch the instruction video on how to use both tools.

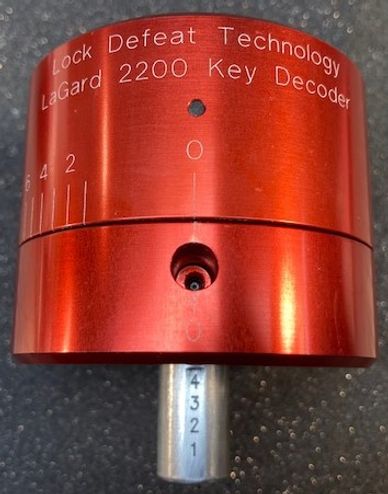

Lagard 2200 Key Decoder – This tool is a precision instrument used to decode an existing key. This device can be used on the old and new design keys. What is the primary use for this tool? One of the most common reasons for a mechanical failure on the Lagard 2200 is when one or more of the wheels changes its own combination. This is usually caused by a rough working lock and the wheel (s) change to a new setting which prevents the existing key from opening the lock. By using this tool first on the customers key, we can determine the original settings for the 4 wheels. Since this lock is working poorly, picking this lock is much more difficult because of the lack of feel when moving the wheels with the pick. We are able to utilize the decoding information and load the lock to the original wheel settings on all four wheels using our special design pick. We can then randomize one wheel at a time to open the lock

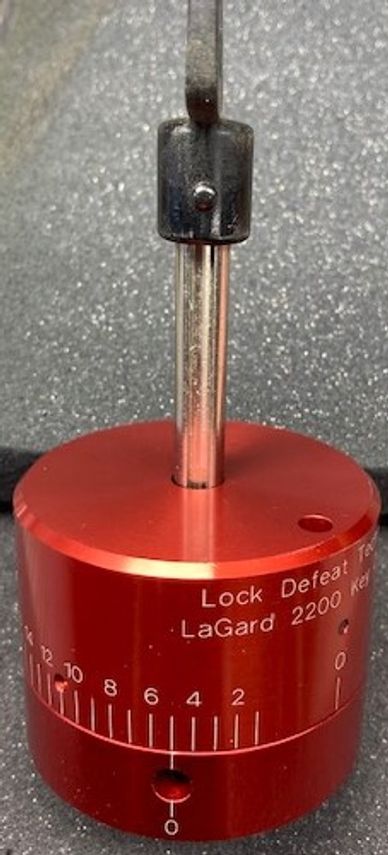

Decoder has been rotated to stop and indicates a #5 depth cut in this position. There is a spacing detent at all 4 positions to then rotate decoder to measure the depth of key in that specific position..
